Microscopes and Accessories by Unitron
Instrumentation for Industry, Metallurgy, Materials Science and Education Since 1952

UNITRON_Resized02

Visit the Unitron Website for details on the complete line of microscopes,
illuminators and digital microscopy cameras

Luxo microscopes by Unitron
Stereomicroscopes
Stereomicroscope accessories
Digital inspection

Metallurgical microscopes
Polarizing and industrial microscopes
Forensic microscopes
LED illumination







LUXO Microscopes by Unitron



Designed for Industrial and Manufacturing Applications

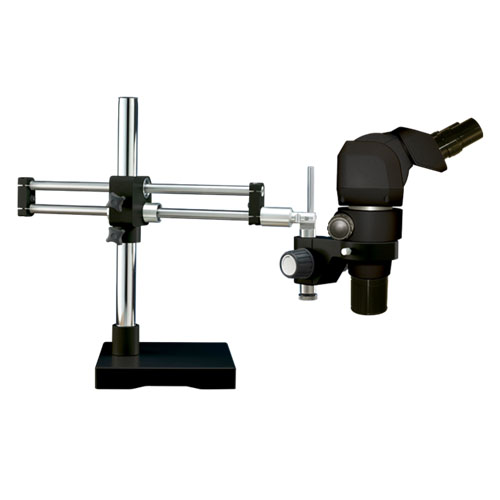

luxo_us_vip_microscope_23814rb-esd-500x500LUXO VIP (Variable Inclination Position) stereomicroscope, 8x-50x zoom range with 10x eyepieces.  Tilting viewing tube ensures proper posture during use.  ESD-safe powder coated metal laced paint.  8” working distance when used with the included 0.5x auxiliary objective lens.  Dual boom roller-bearing stand included.

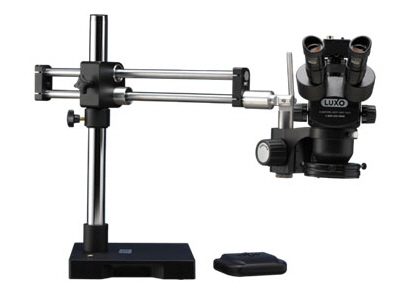

System 373_trinocLuxo System 373 ESD-safe trinocular stereomicroscope, 7x-45x zoom range with 10x eyepieces.  Powder coated ESD safe metal laced paint.  Packages include auxiliary objective lenses of various magnifications and trinocular body with included USB 2.0 digital camera.  Dual boom roller-bearing stand included.

System 250-fl_microscope_on_single_boom_stand_with_ring_light_ResizedLuxo System 250 Binocular Stereo Zoom Microscopes are an economical option for a wide variety of applications. With a 20mm optical system and single boom stand, these microscopes are best-suited for lighter-duty use inspection applications.

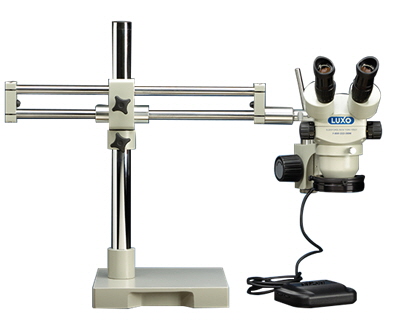

System 273System 273 stereomicroscope, 7x-45x zoom range with 10x eyepieces.  Preconfigured packages include non-ESD and ESD-safe versions, LED ring lights, lab stands, flexible arm stands, post stands, dual boom roller-
bearing stands.





Stereomicroscopes

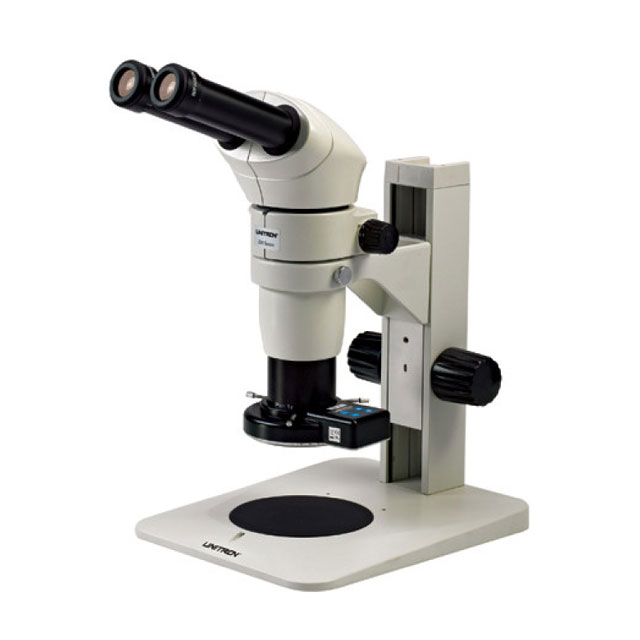

z10Z10 Series   8x-80x zoom range with 10x eyepieces.  Versions also available with
8x-64x and 8x-50x zoom ranges.  Preconfigured packages include stereomicroscope with plain focusing stand, coaxial coarse-fine focus stand with LED illumination, boom stand, and dual boom roller-bearing stand.  A dual viewing system is also available.

Z650HR-LEDZ650HR Series   Offers higher resolution, brighter and higher contrast images.  6x-50x zoom range with 10x eyepieces. Trinocular body.  Preconfigured packages include plain focusing stand, pole stand, coaxial coarse-fine focus stand with LED illumination, gemological stand, diascopic stand with rear port for fiber optic
illuminator, boom stand and dual boom roller bearing stand.

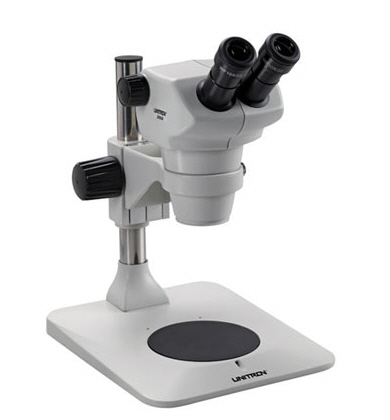

Z850Z850 Series   8x-50x zoom range with 10x eyepieces.  Binocular and trinocular versions available.  Preconfigured packages include plain focusing stand, pole stand, coaxial coarse-fine focus stand with LED illumination, gemological stand, diascopic stand with rear port for fiber optic illuminator, flex-arm stand, boom stand and dual boom roller-bearing stand.

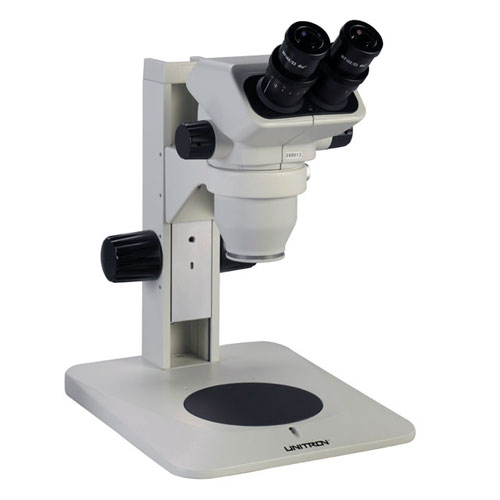

FS30FS30 Series   Fixed magnification stereomicroscope with dual magnification settings.  Available in 1x/2x, 1x/3x and 2x/4x magnification settings.  Preconfigured packages include stereomicroscope with plain focusing stand, coaxial coarse-fine focus stand with LED illumination, pole stand, boom stand, and flex arm stand.

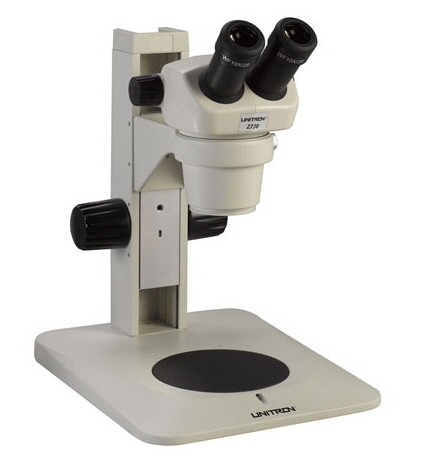

Z730Z730 Series   7x-30x zoom range with 10x eyepieces. Ideal for final inspection, quality control and assembly.   Preconfigured packages include plain focusing stand, pole stand, coaxial coarse-fine focus stand with LED illumination, gemological stand, diascopic stand with rear port for fiber optic illuminator, flex-arm stand, boom stand and dual boom roller-bearing stand.

Z12onLEDStand-23_ResizedThe new Z12 zoom stereo microscope from UNITRON features a Common Main Objective design, a 12.5:1 zoom ratio and an 8X to 400X magnification range.  The Z12 addresses a wide variety of applications from assembly and quality control in the industrial markets, to stem cell and embryo selection in the life sciences.









Stereomicroscope Accessories

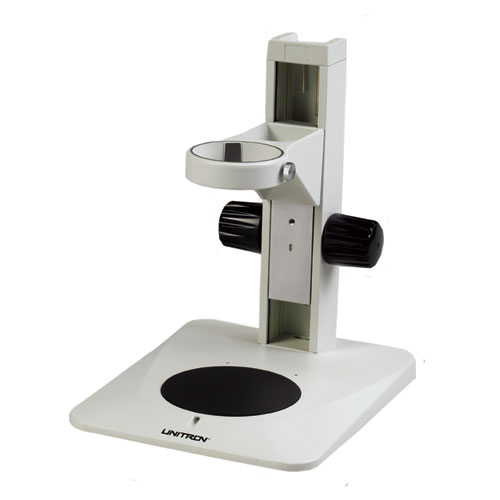

Plain Focusing StandStands   Most of Unitron’s microscopes can be configured on various stands to meet your requirements.  These include plain focusing, coaxial coarse-fine focusing, glide stages, LED stands, pole stands, gemological stands, boom and ball-bearing boom stands, flex arm stands and bonder arms.

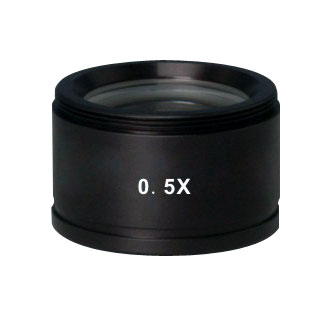

Aux LensObjectives and Auxiliary Lenses   Depending on your requirements, the magnification and working distance of Unitron stereomicroscopes can be changed by using auxiliary lenses.  The auxiliary lenses are model-specific and include achromat, plan achromat and plan apochromat versions.  Please inquire for details of available auxiliary lenses for your choice of stereomicroscope.

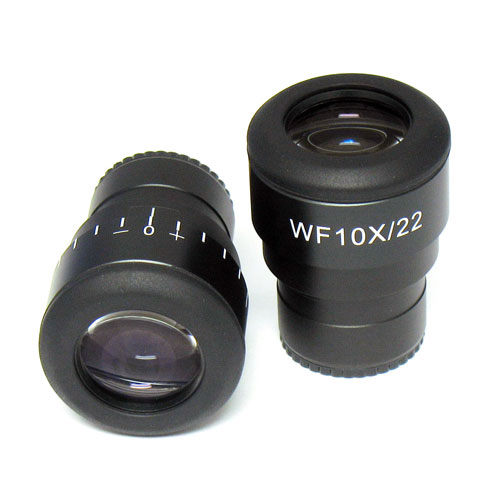

EyepiecesEyepieces    Options are available, depending on the model of stereomicroscope.  The options include 10x, 15x, 16x, 20x and 30x.  Inquire for details to match a set of objectives to your choice of microscope.

C-mount-5x_ResizedCamera Adapters Fixed and focusable digital camera adapters for all chip sizes, as well as adapters for DSLR cameras and beamsplitters to add a camera port.









Digital Inspection

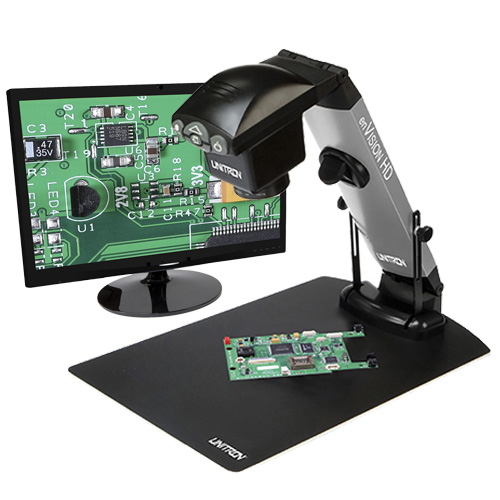

Inspex HD 1080pInspex HD 1080p    Digital inspection station with HD images at 60fps.  Integrated LED illumination system.  HDMI and USB 2.0 outputs.  Options include LED ringlights, fiber optic illuminators, polarizers and auxiliary objectives.  Various stands and mounting options are available.

2018-Inspex-II-Side-View-3_ResizedThe INSPEX II digital inspection is a robust, dependable inspection instrument: easy to use, measurement tools, real-time video, preset configurations, pre-calibrated, and so much more!

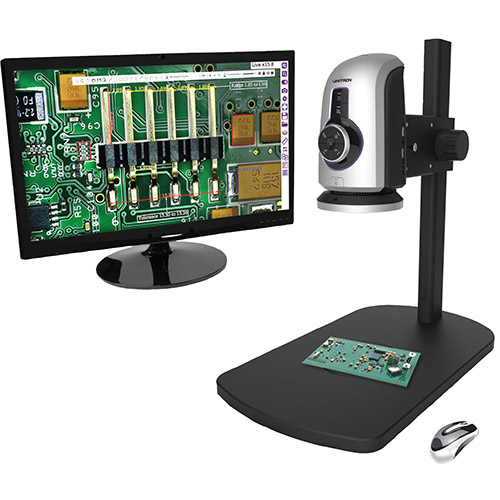

OmniOMNI    Stand-alone digital inspection station with onboard software for imaging and measurement, no computer required.   Capable of staying in calibration over the entire zoom range.  Options include LED ringlights, fiber optic illuminators, polarizers and auxiliary objectives.  Monitor not included.  Recommended monitor is Full HD 16:9.

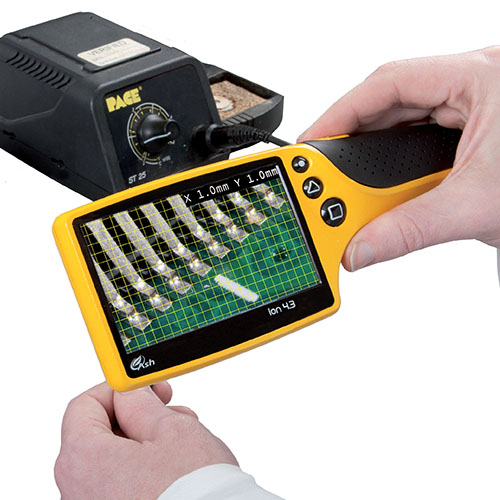

Ionion 4.3”    Hand-held 4.3” digital magnifier, with integrated LED illumination and image capture with dimensioning grids.  Stores up to 100 images in 480x272 format.  Micro USB output for image transfer to computer.  Ideal for portable inspection and hard-to-reach .areas.









LED Illumination



DJ1DJ3Quad Ring1DJ2GooseneckLED Ringlight2LED RinglightQuad Ring2LED Ringlight4

Unitron provides LED-based illumination systems for all applications.  Products include LED ringlights, LED quadrant ringlights, LED 8-point ringlights, LED goosenecks, dome lights, polarizing ringlights, and the Dolan-Jenner line of LED ringlights on goosenecks and for mounting on microscopes.  Please inquire for more details.









Metallurgical Microscopes

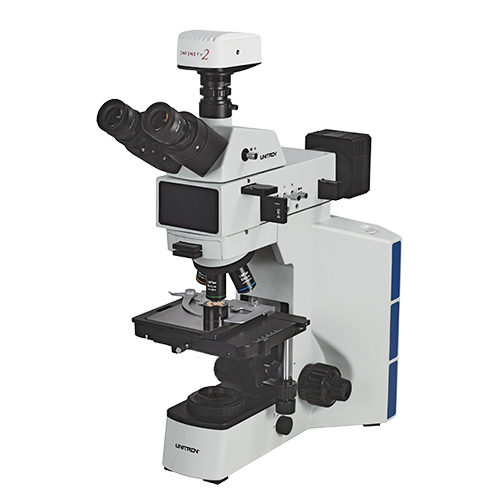

Examet-5EXAMET-5    Upright metallurgical microscope designed for brightfield metallurgical applications.  Trinocular viewing head with 100/0 and 50/50 split.  Plan Achromat 5x, 10x and 20x objectives and Semi-Plan Apo 50x objective.  Models available with reflected and reflected/transmitted light illumination.  Both Illumination sources are 5 Watt LEDs.  Options include digital cameras, 100x objective, 16x eyepieces, polarizer and analyzer, yellow, blue, green or neutral density filters, measuring reticles and stage micrometers.

mec4-500x500_ResizedMEC4   Inverted metallurgical microcope, designed for brightfield and simple polarization observation. Trinocular viewing head with 100/0 and 80/20 split, Plan Achromat LWD 5x, 10x, 20x and Semi-Plan Apo 50x objecives.  Attachable mechanial stage with right-hand coaxial controls.  5 Watt variable LED illumination. Options include digital cameras, 100x objective.  Crossline, grid, Austentite grain sizing and custom pattern eyepiece reticles.

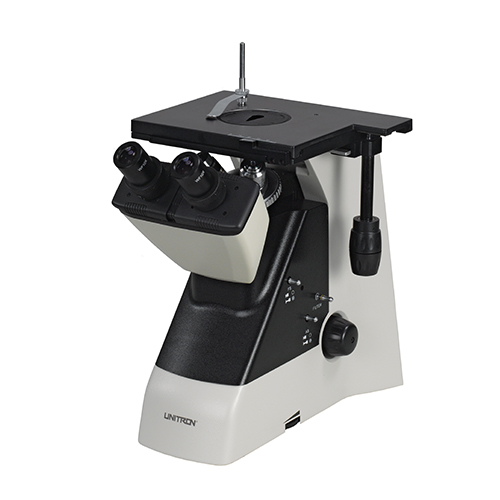

microMET-500x500microMET    Compact, designed for routine metallurgical applications.  Binocular viewing head.  Plan Achromat 10x, 20x and 50x objectives, optional 5x and 100x dry objectives.  Integrated mechanical stage with teardrop and circular hole stage plate inserts.  20 Watt variable halogen illuminatior with bulb centering adjustment.  Integrated green, yellow and neutral density filters.  Optional crossline, grid, Austentite grain sizing and custom pattern eyepiece reticles.

versamet-4-500x500_1_Resized2The Versamet 4 demonstrates sstable and comfortable operation with outstanding image resolution and clarity.  Brightfield or brightfield/darkfield models are available.  Standard polarized light observation. Differential interference contrast also available.









Polarizing Microscope



12100-Polarizing-500x500_Resized12100 Polarizing Microscope Series    For industrial and university-level examination of birefringent materials.  Available as binocular and trinocular (50/50 split) versions.  Quintuple nosepiece with one centering position.  4x, 10x, 20x and 40x Plan Achromat strain-free objectives.  Polarizer and analyzer are both 360° rotatable.   λ tint plate, 1/4 λ retardation plate and quartz wedge. Variable 5 Watt LED illuminator.

.









Forensic Microscopes

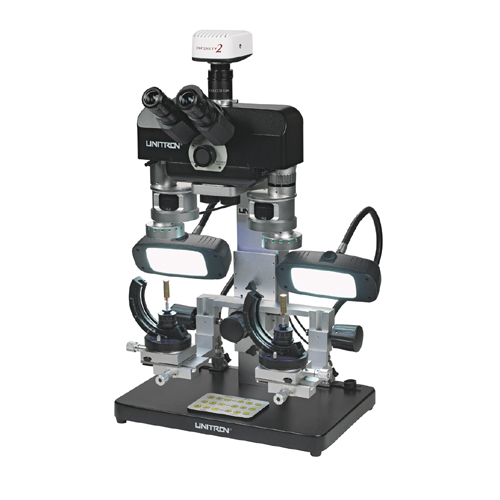

Forensic_ergo16210-Forensic-Fluorescent-lgCFM Series Forensic Comparison Microscopes    Designed with input from police organizations, forensic scientists and forensic science educators.  Available with fixed or tilting ergonomic trinocular tube and diffused fluorescent or focused LED epi-illumination.  Five matched magnification steps of 0.8x, 1.25x, 2.0x, 3.2x and 4.8x.  Left and right images can be viewed as 100% left, 100% right, split or superimposed.  Adjustable split image dividing line.  Circular ball-bearing precision stages with horizontal coaxial stage controls.  95 mm working distance.  Universal bullet holders with rotation and inclination of objects along a 90° positioning range on 360° rotatable platform.  Wide range of stage mounting plates, wire
 holders, bullet holders and cartridge holders.  Options include 16x, 25x and 30x eyepieces; 0.4x and 2.0x auxiliary objectives; digital and HD cameras; transmitted light stages for viewing transparent or translucent specimens; polarizers.
